Carbonxide M1
Dense and Insulating
Alumina based castables

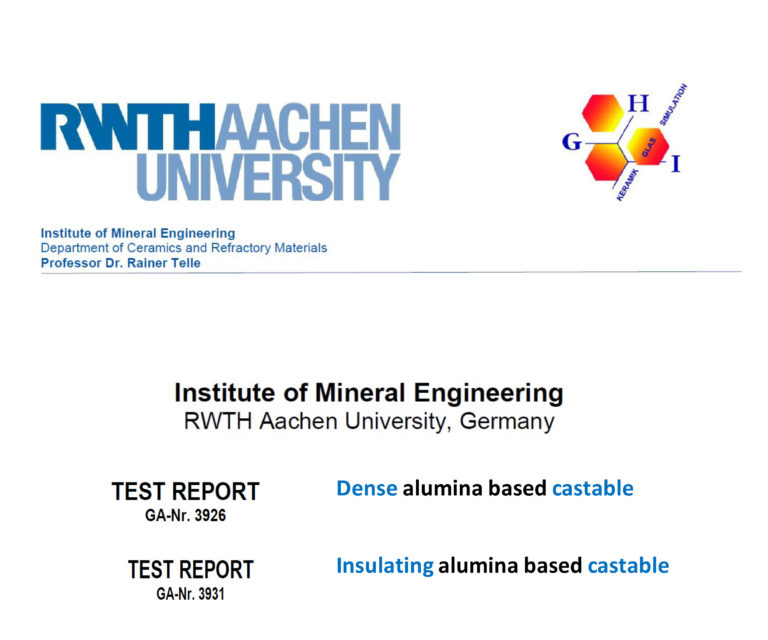

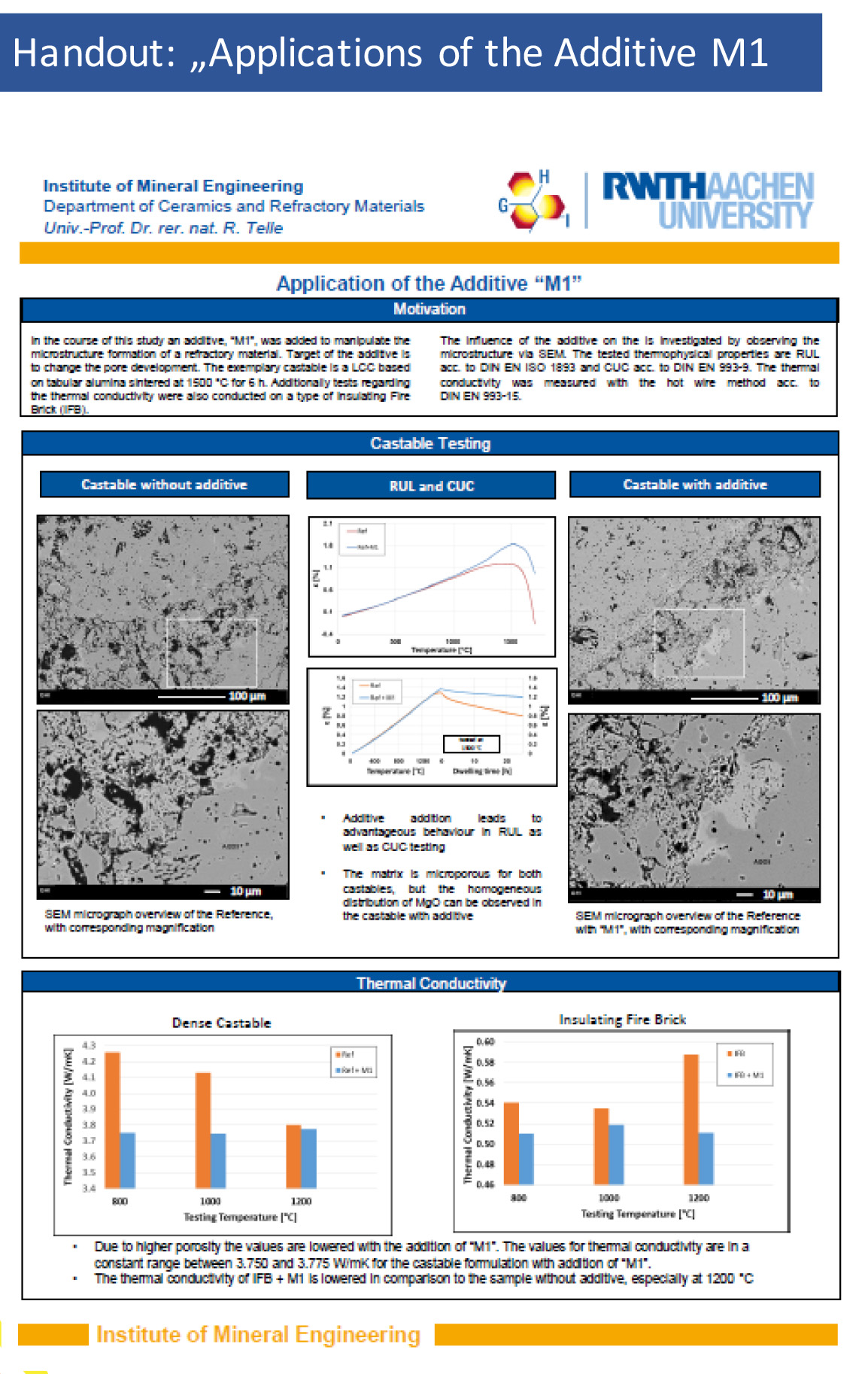

Results in Lab & Practice
Results on alumina based dense castable

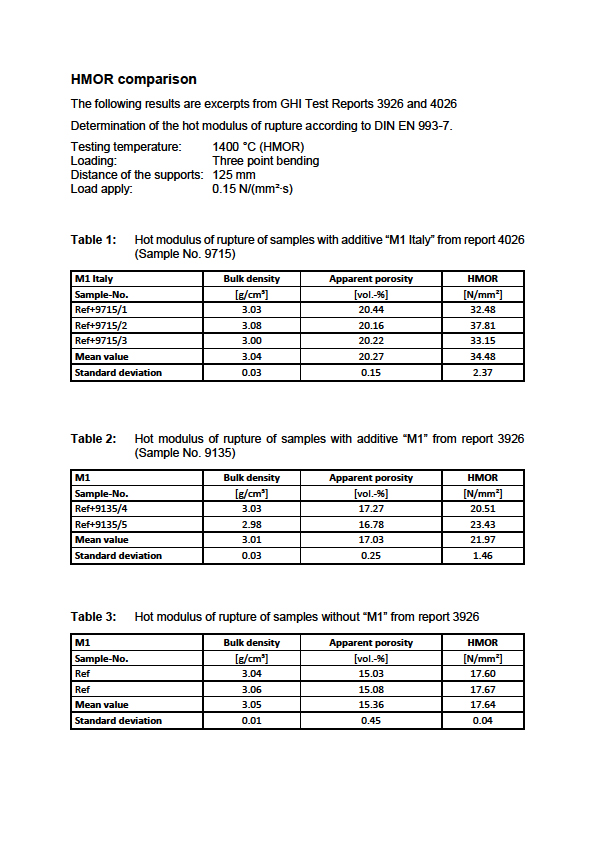

Comparison with and without additive- Influence of 1% Carbonxide M1
- Table 1: New Additive M1 (IT) – (2019) – Porosity: 20,27% – HMOR: 34,48 N/mm2
- Table 2: Additive M1 (CH) – (2018) – Porosity: 17,03% – HMOR:21,97 N/mm2
- Table 3: Standard cartable without Additive – Porosity: 15,36% – HMOR: 17,64 N/mm2
Results on alumina based dense castable
Influence of 1% Carbonxide M1

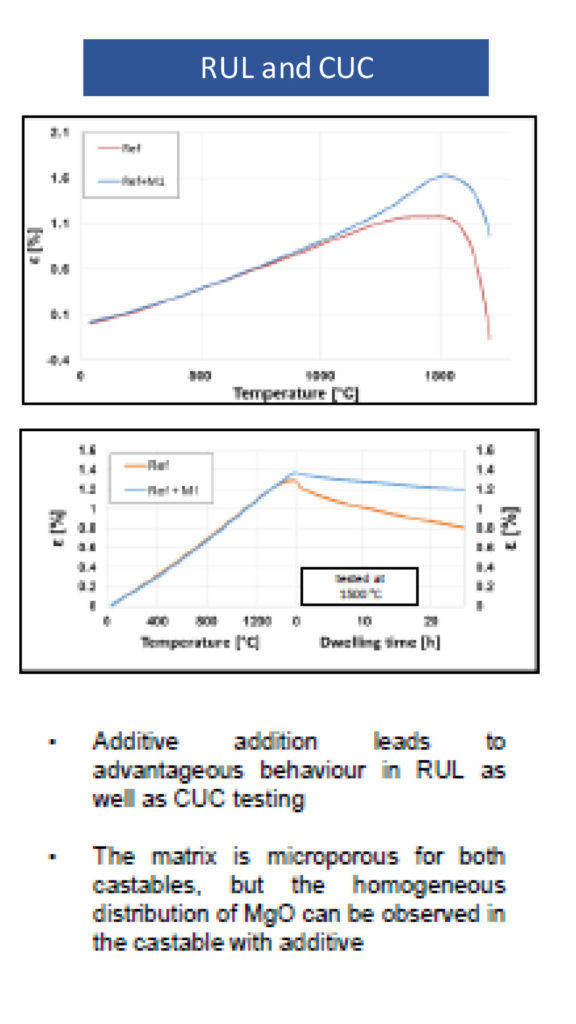

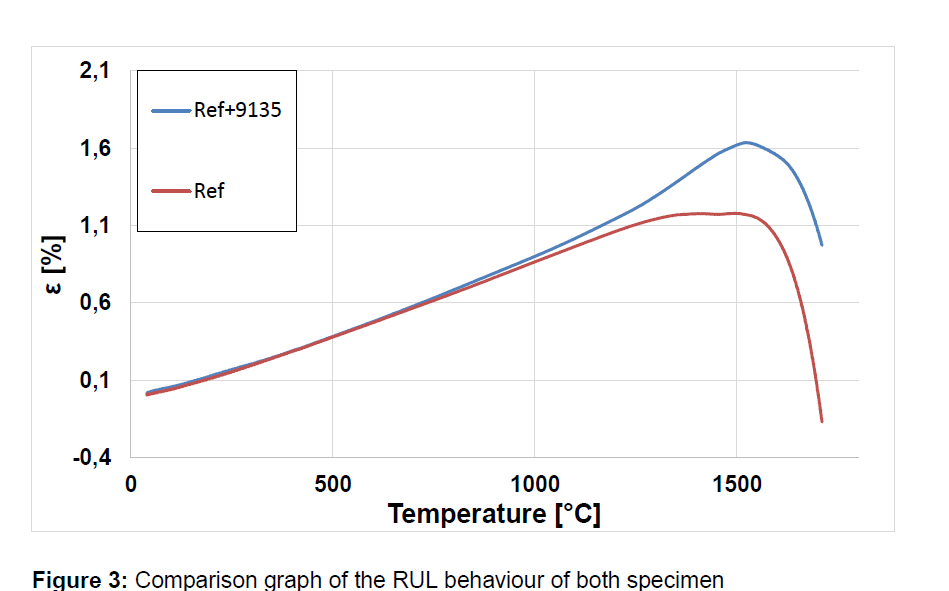

Refractoriness under Load (RUL)
with and without Carbonxide M1

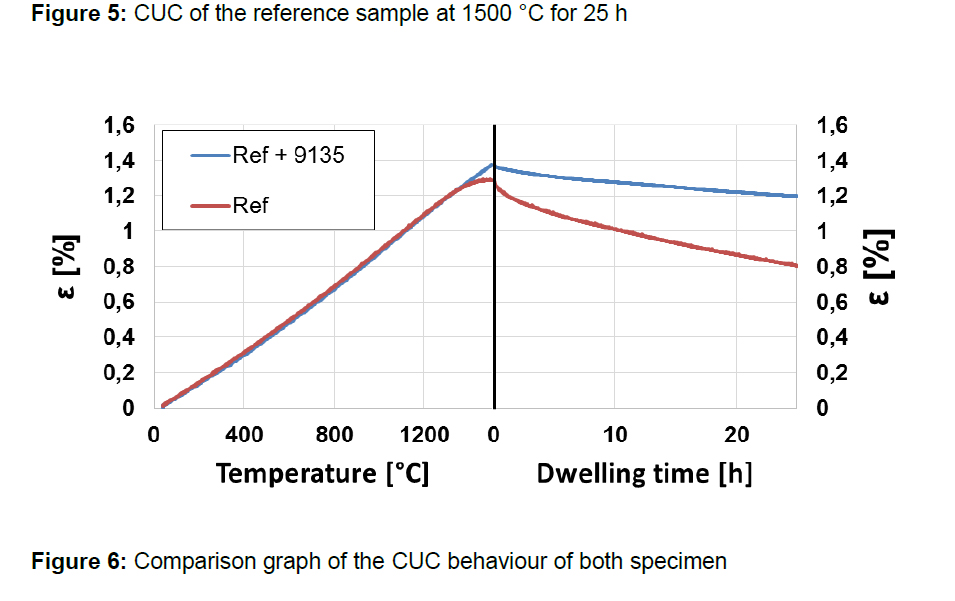

Creep under Compression
with and without Carbonxide M1

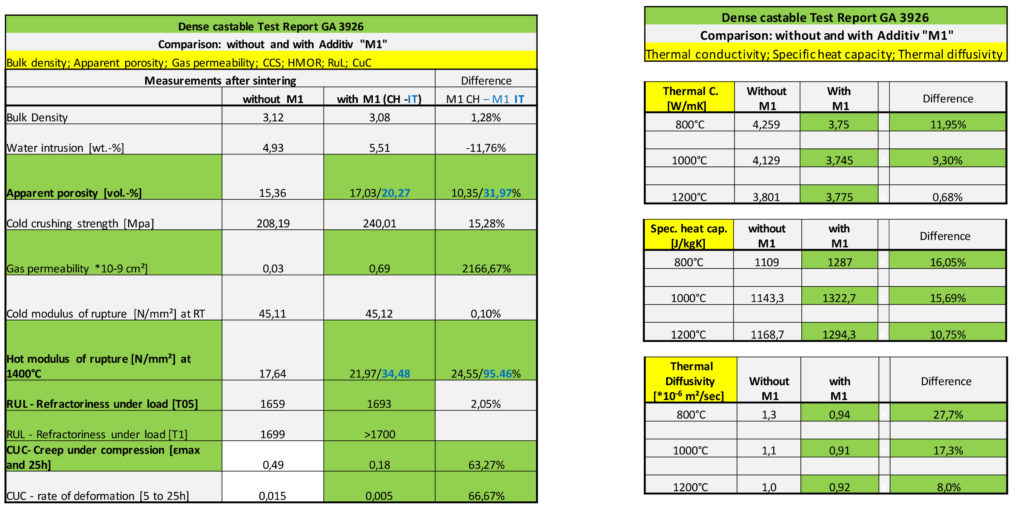

Summary of Lab Tests from Dense castable
Comparison with and without additive M1
1. Comparable results with the Additive M1
- Bulk Density
- Cold Crushing Strength (CCS)
2. Improved results with the Additive M1
- Apparent Porosity

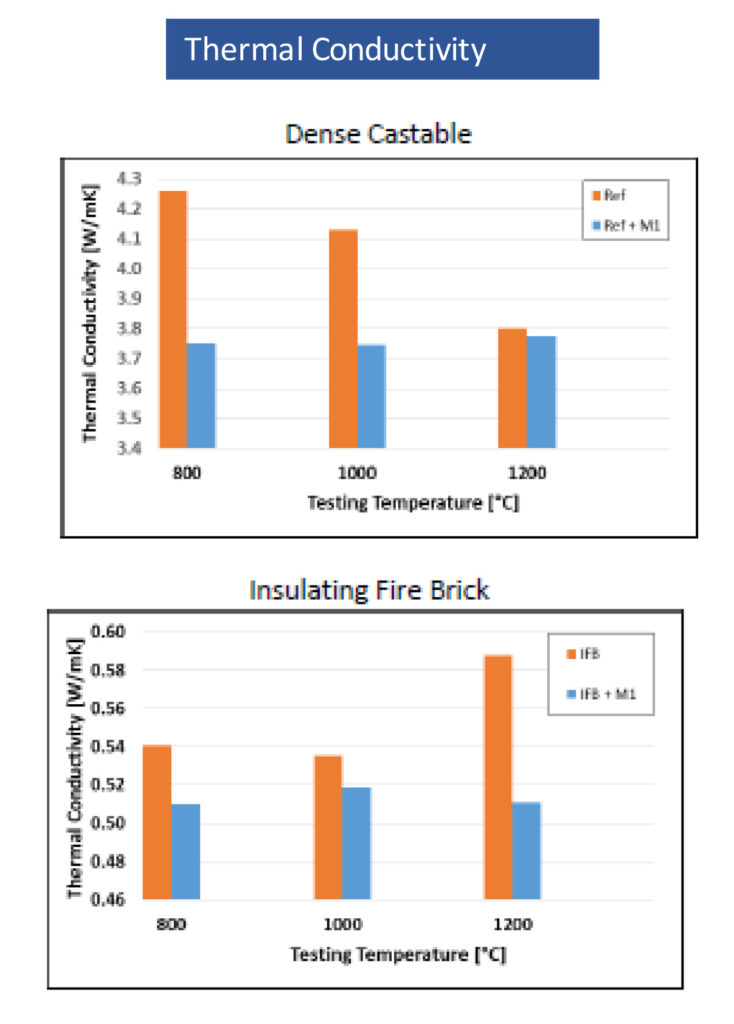

- Thermal conductivity
- Young’s modulus of rupture
- HMOR
- Refractoriness under Load (RuL)
- Creep under Compression (CuC)
- Thermal Diffusivity
- Specific heat capacity
Results on alumina based insulating castable
Influence of 1% Carbonxide M1

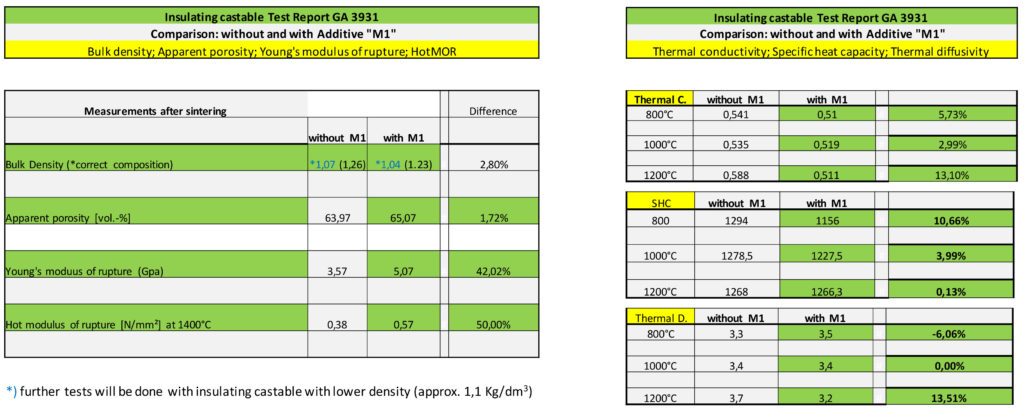

Summary of Lab Tests from Insulating castable
Comparison with and without additive M1
1. Comparable results with the Additive M1
- Bulk Density
- Apparent Porosity
- CCS
2. Improved results with the Additive M1
- Thermal conductivity
- Young’s modulus of rupture
- HMOR
- Specific heat capacity
- Thermal diffusivity

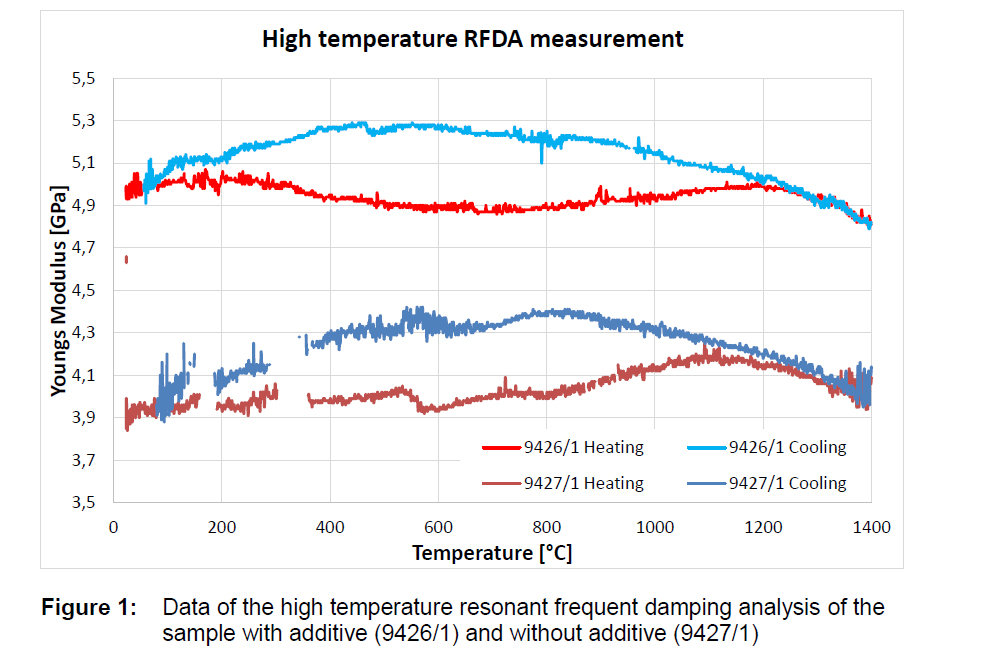

- HT-Resonant frequent damping analysis (RFDA)
ICR - International Colloquium on Refractories

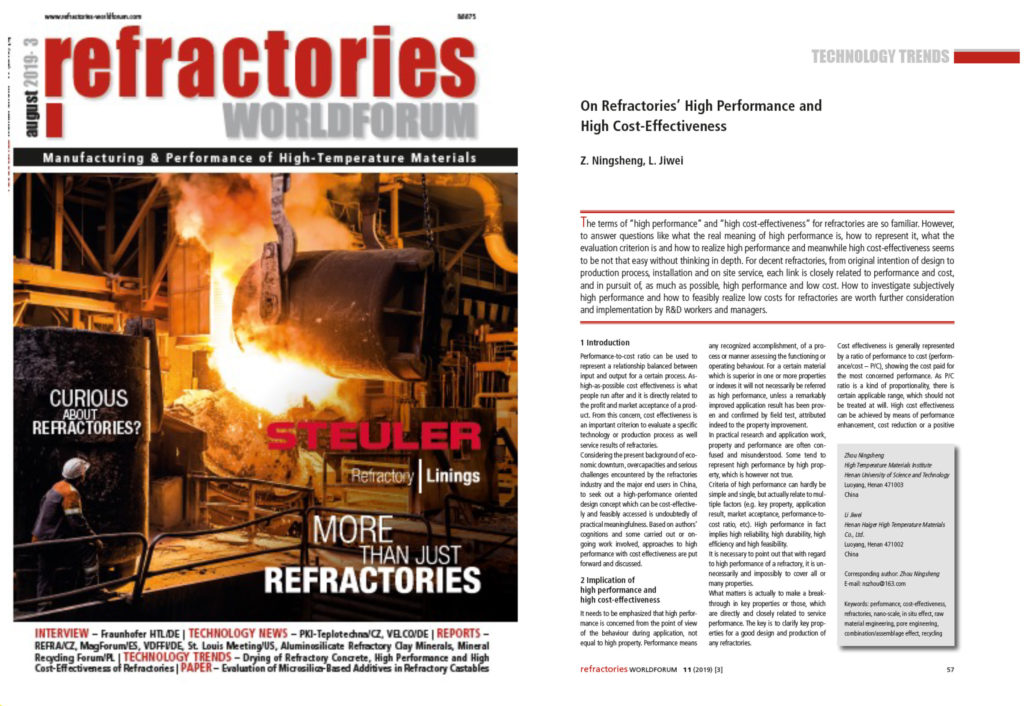

Refractories Worldforum
